XPath select parent by child attribute

Using the XML parser for a crawler works great. Most of the sources are well formatted and easy to parse. Unfortunately not all sources are that easy and that's where some advanced XPath comes in handy.

As mentioned in an earlier blogpost I'm using the XML parser for a crawler. Most of the sources are well formatted and easy to read. Unfortunately not all sources are the easy to use. For one source I needed the parent element but could only select it by the attribute of a child element. I thought it would be possible to select the parent by using XPath but I needed to figure out how.

Before explaining which XPath you can use for this case, I will show some example XML for this test case:

<collection>
    <users>
        <user type="admin">
            <id>123</id>
            <name>John</name>
        </user>
        <user type="op">
            <id>345</id>
            <name>Rick</name>
        </user>
        <user type="op">
            <id>678</id>
            <name>Nicolas</name>
        </user>
    </users>
</collection>

It's pretty simple XML and it's easy to select the "ops" from the XML by using this XPath:

//user[@type="op"]

XPath test 1

This return the user element of "Rick" and "Nicolas".

See this blogpost for using the Google Chrome console to view the result of a XPath.

But what if you want to know which type of user John is? I need to select by the name "John" but needs the user element. So we start making the XPath by selecting the user "John":

//name[text()="John"]

Now we want the parent "user" element in which the text of the element "name" is "John":

//user[name[text()="John"]]

XPath test 2

That's it.

Just take one more example, but use a real test case. The website Tweakers.net sometimes posts video items. Let's say we are only interested in those video items and want to select the table row which contains a link to a video item. We can recognize those links because they contain /video. When we combine this into a XPath it is like this:

//tr[td[@class="title"]/a[contains(@href, "/video/")]]]

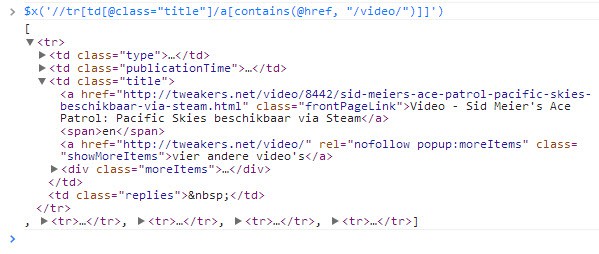

XPath test 3

You can try this test case yourself, just head to the website and use the Google Chrome console for selecting the elements.
